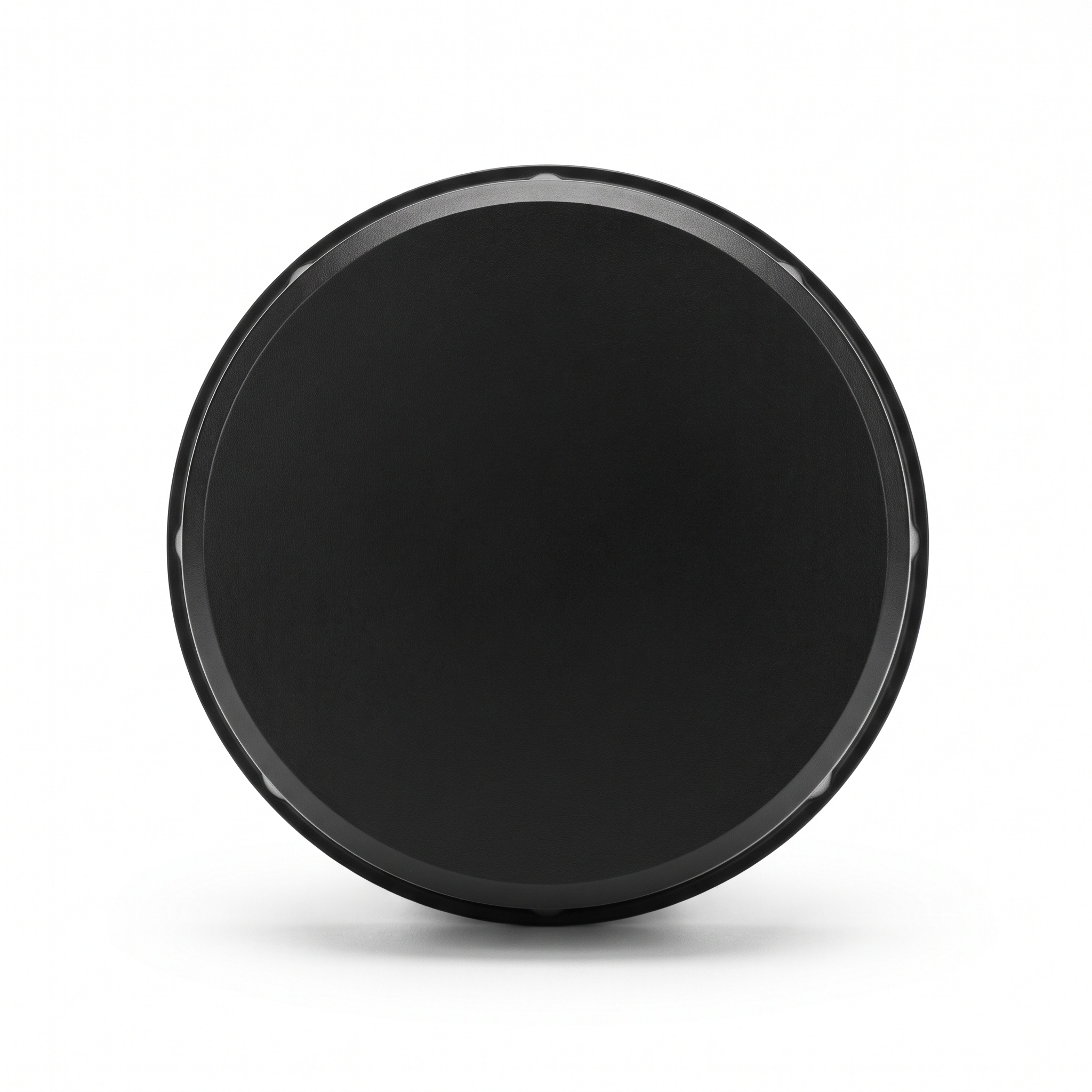

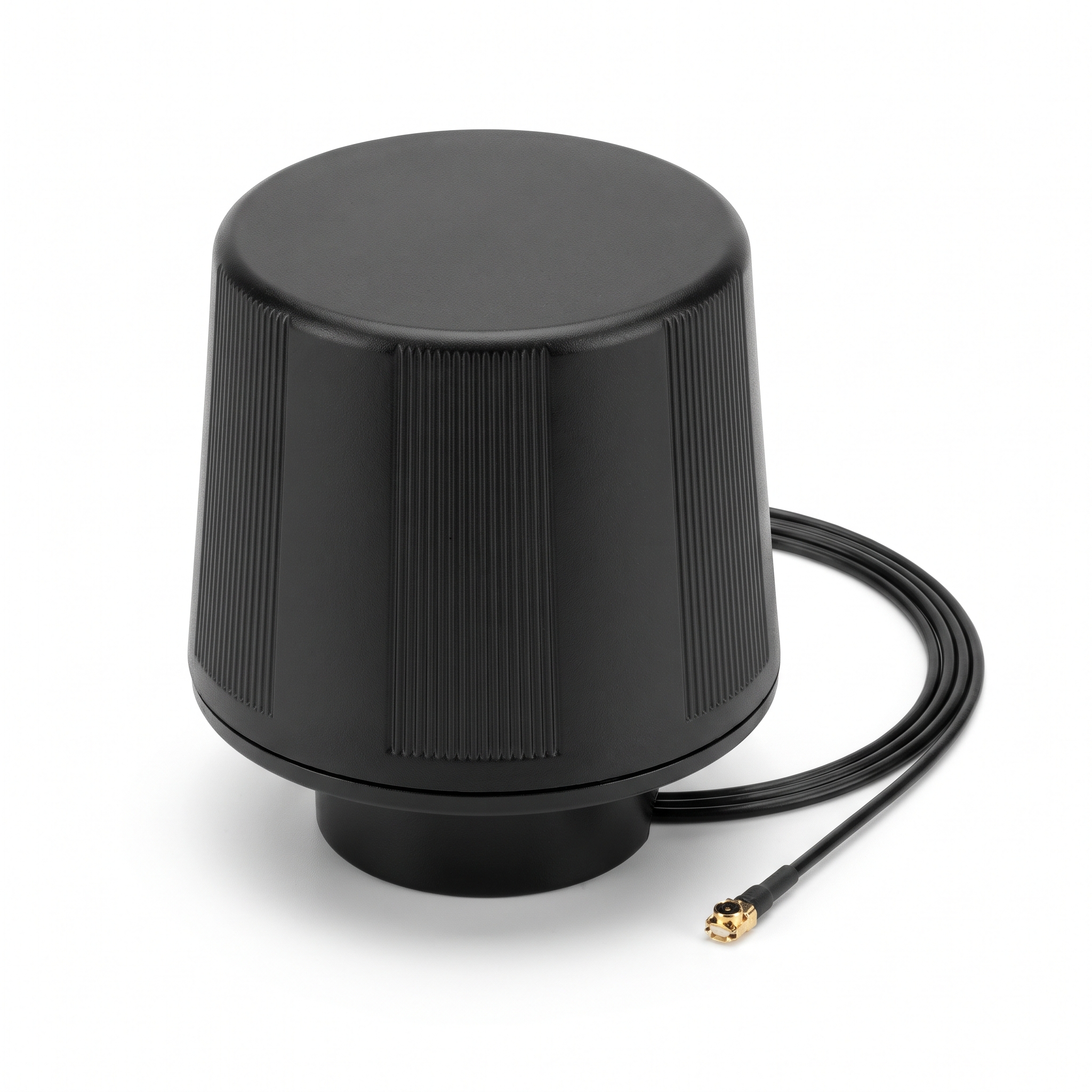

Helical Antenna
GH002E
Full Frequency Helix Antenna
The Navxation GH002E embedded helix antenna is designed for high precision positioning service and offers superior satellite signal tracking, including GPS, GLONASS, GALILEO, BeiDou, as well as L-Band correction service. Its centimeter level positioning accuracy makes it ideal to be integrated into applications as surveying and mapping, and various UAVs operations as aerial photography, remote sensing, infrastructure inspection, traffic control, and public security.
Where to buySpecifications
Antenna
- Frequency (Full Frequency)
- GPS / GLONASS / GALILEO / BDS / QZSS / IRNSS / SBAS / L-Band / Wi-Fi / BT / LTE
- Polarization
- RHCP
- Axial Ratio (@zenith)
- ≤1dB
- Output VSWR
- Per final datasheet
- Peak Gain
- 2.5dBc
- PCO (phase center parameters)
- Per final datasheet
Low Noise Amplifier
- Gain
- 32±2dB
- Noise Figure
- 2dB
- VSWR
- Per final datasheet
- Out of Band Rejection
- Per final datasheet
- Operation Voltage
- +3.3~12VDC
- Operation Current
- Per final datasheet
Mechanical
- Dimensions
- ⌀50*60MM
- Weight
- Per final datasheet
- Connector
- IPEX
- Mounting
- Per final datasheet
Environmental
- Operating Temperature
- Per final datasheet
- Storage Temperature
- Per final datasheet
- Humidity
- 95% Non Condensing
- Ingress Protection
- Per final datasheet
- Vibration and Shock
- Per final datasheet
- Salt Spray
- Per final datasheet
- Lightning Protection
- Per final datasheet
- Regulatory Compliance
- Per final datasheet
- NGS/IGS
- Per final datasheet
Drawings
Dimensional drawings awaiting client
